What are the commonly mentioned components of a transformer?

Transformer accessories currently available on the market mainly include:

Transformer bushings; Transformer breathers; Transformer conductor rods; Transformer insulators; Oil-resistant beads; Oil-resistant gaskets; Oil-resistant ropes; Acrylic rubber; American-made four-piece set; Transformer butterfly valves; Transformer gate valves; Transformer silicone rubber sheaths; Drop sheaths; Lightning arrester sheaths; Drain valves; Thermometers; Oil level gauges; Gas relays; Resin pads; Silicone rubber pads; Rubber tubes; Oil-resistant rubber plates; Silicone plates; Silicone strips; Dry-type transformer sheaths; State Grid sheaths; Phosphor bronze clamps.

Today, I will introduce the types and models of transformer conductor rods.

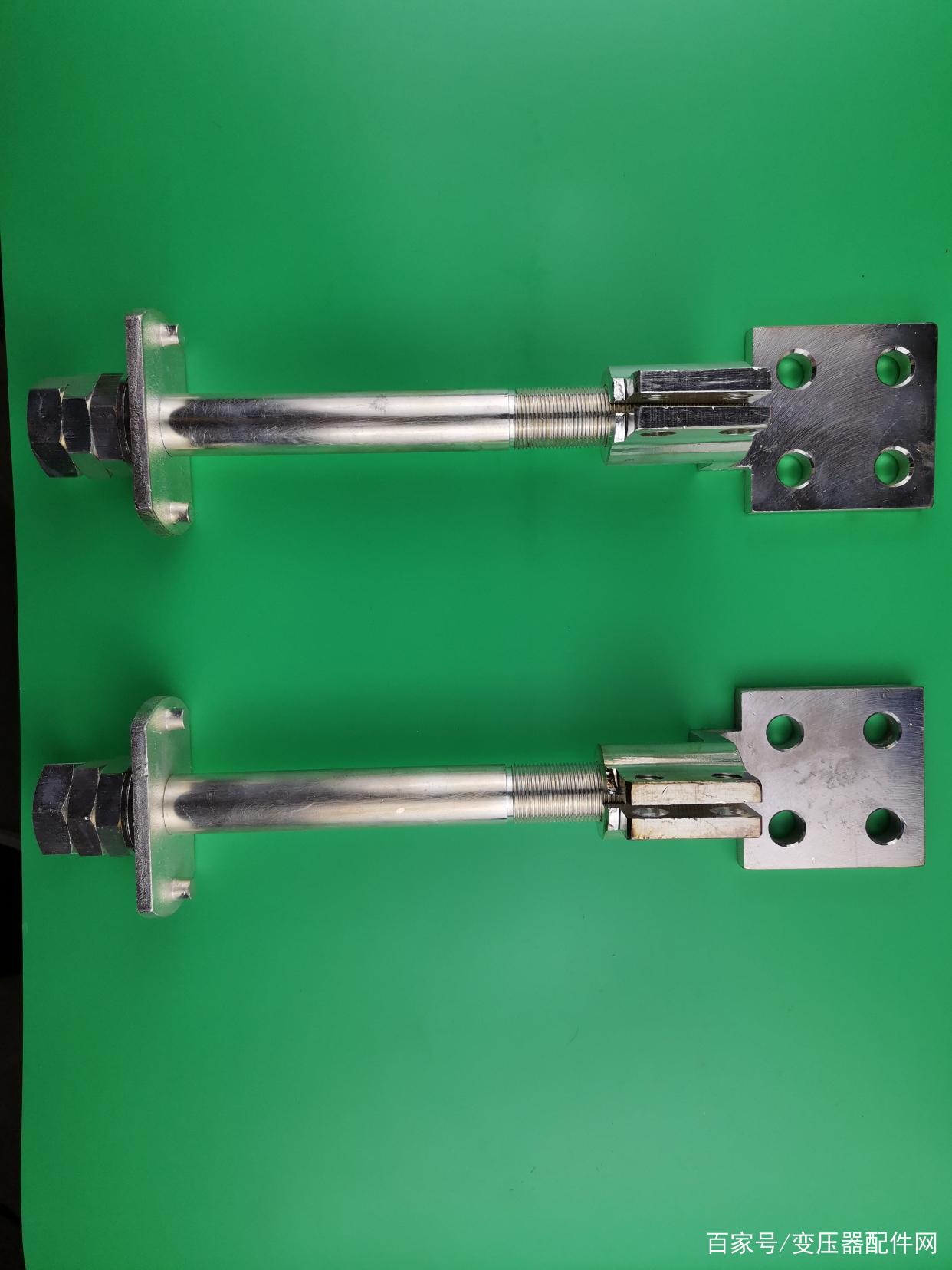

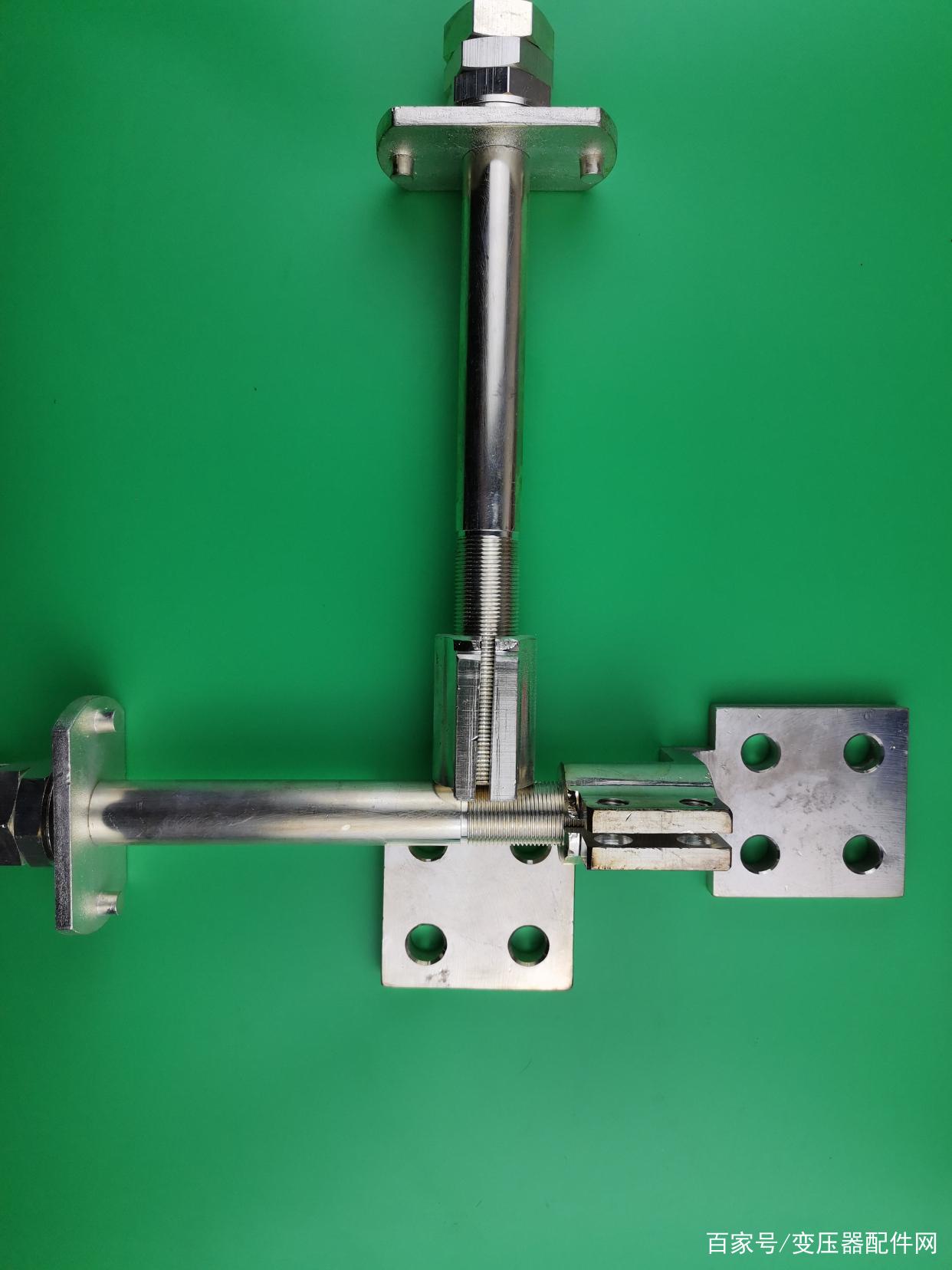

Conductor rods are used to connect the transformer coil leads to external high-voltage lines and are installed on top of the transformer. Generally, they consist of three sets of high-voltage conductor rods and four sets of low-voltage conductor rods. The outer parts are separately insulated with porcelain bushings, sealed with an oil-resistant bead and an oil-resistant gasket. Conductor rods can be divided into brass (copper number HPb 59-1) conductor rods and phosphor bronze (copper number Cu T2) conductor rods by material, and into high-voltage and low-voltage conductor rods by use. Generally, there are standard conductor rods for transformers below 110kV and various non-standard conductor rods, as well as matching copper nuts, copper washers, terminals, busbars, copper standard parts and non-standard parts. Features include good conductivity, low resistivity, and custom designs are also available.

High-voltage conductor rod models for brass and phosphor bronze: Φ12×115, Φ12×120, Φ12×125, Φ16×204, Φ20×204, 30*240, and various other specifications. Low-voltage conductor rod models for brass and phosphor bronze: Φ12×195, Φ16×220, Φ20×240, Φ24×270, Φ30×280, Φ33×285, Φ42×386, Φ48×386, Φ42×275, Φ48×275, Φ52×295, Φ56×295, and various other specifications. Low-voltage conductor rods generally increase the number of terminals to meet the requirements of conductivity and increased wiring area.

Welcome to follow us for more knowledge about transformers.

Transformer Conductor Rods
